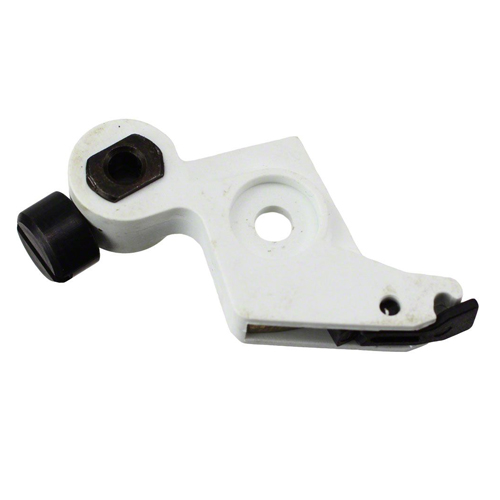

TWIN GIMPING FOOT WITH GUIDE

Model No: 920302096

  • Spec1: Shank Adapter : 4124112-45
  • Spec2: Shank Adapter : 4126161-45 (New Type)
  • Spec3 : Fits HUSQVARNA VIKING® Sewing Machines
  • Spec4 : Made In Taiwan All includes Internal parts
Features:

P.K. Number : 920302096

P.T. Number : contact us

Please kindly use Twin Needles

1.6mm twin needles check here (70)

1.6mm twin needles check here (80)

Fits : HUSQVARNA VIKING sewing machines.

M.O.Q. : 500 SETS (For regular 100 pcs / Zipper bag)

M.O.Q. : 500 SETS (For PACKAGE)

MADE IN TAIWAN (UNIQUE CHOOSEN)

Details : renjyico1965@gmail.com

BACK TO LIST

MORE Information

920302096 (SET) family sewing machines : 1 2 3 4 5 6 7

not for EMERALD™ 122, 118 and 116 machines.

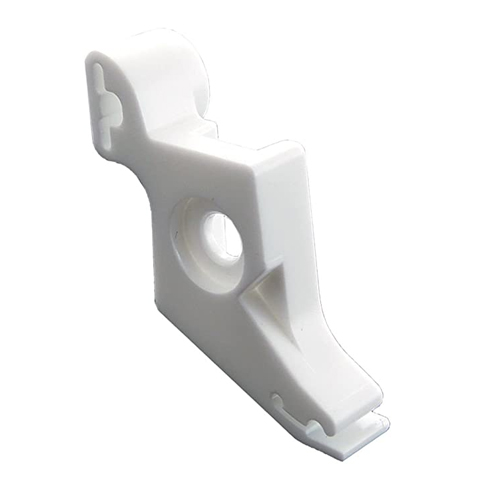

This set will includes Tvilling Gimping Guide and Twin Gimping Foot

Before fitting sewing machines, please check the following classification :

(HUSQVARNA VIKING sewing feet belongs to TAIWAN UNIQUE choosen)

By finding the code letter that represents your machine from the list below,

You'll be able to tell which accessories through-out the catalogue are available for your machine.

If you have any questions, Please check the HUSQVARNA VIKING offical website : HUSQVARNA VIKING

Which presser foot fits your sewing machine? Just check the following.



Wonderful decorative embellishments are easily sewn with this
special foot. Use the Twin Gimping Foot and a 1.6 twin needle
to create three-dimensional satin stitches. Two gimp threads are
guided by the foot as the stitch is sewn.
1. Insert a 1.6 Twin Needle.
2. Thread with two spools of 40 wt. rayon embroidery thread on top and embroidery
bobbin fill or regular sewing thread in the bobbin. The threads can be the same color,
or two different colors.

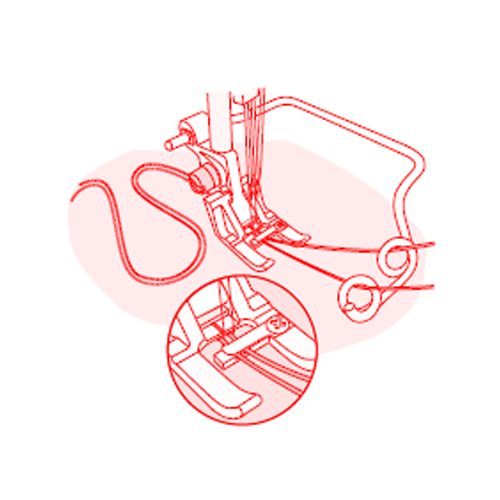

3. Place the straight end of the Guide into the hole at the top of the presser foot ankle. Tighten
the screw (on some models) to hold the guide in place.
4. Thread the gimp threads into the curly-Q ends of the guide and insert gimp threads into the
guides in the front of the foot and then bring back underneath and into the grooves on
the bottom of the foot.
5. Snap on the presser foot.
6. Place the spools or lengths of gimp threads so they will feed smoothly into the foot as you
sew.
7. Select a narrow satin stitch, set the length to 0.4-0.6mm and the width to 1.5mm.
(On some machines; select a narrow and dense zigzag stitch)
8. Use a fabric marker pen and draw a design onto your fabric and sew over it. The design will
be outlined in a three dimensional satin stitch. Use stabilizer as needed.
Tip: If applicable to your machine, put both thread spools in vertical position for a more
even feeding of threads.



HUSQVARNA VIKING 1

ORCHIDEA™, 1250, #1+, 1200, 1100, 1090, 1070, 1070 S, 1050.

HUSQVARNA VIKING 2.

990 S, 990, 980, 960, 950 S, 950, 945, 940.

HUSQVARNA VIKING 3.

630, 620, 610, 190, 185, 180, 150, 120.

HUSQVARNA VIKING 4.

105, 100, 95, 90.

HUSQVARNA VIKING 5.

PRELUDE™ 360, PRELUDE™ 340,
DAISY™ 335, 330, 325, 320, 315, 310,

HUSQVARNA VIKING® 250, 230, 225/215, 210, 205,
SCANDINAVIA™ 100,
EMERALD™ 122, 118, 116.

HUSQVARNA VIKING 6.

PLATINUM™ 955 E, 950 E,
PLATINUM™ Plus 775, 770, 755

Quilt, 750 Quilt, 735, 730, 715,

ROSE™ 605, 600,

IRIS™, LILY™ 555, 550, 545, 540, 535, 530,

HUSQVARNA VIKING® 500,
INTERLUDE™ 445, 435,

FREESIA™ 425, 415,

HUSQVARNA VIKING® 400, 350,
SCANDINAVIA™ 400, 300, 200,
EMERALD™ 203, 183.

HUSQVARNA VIKING 7.

DESIGNER DIAMOND deLuxe™,
DESIGNER DIAMOND™, DESIGNER
RUBY™ DESIGNER TOPAZ™ 30, 20,
DESIGNER™ SE, DESIGNER™ SE
Limited Edition, DESIGNER™ I, II,
QUILT DESIGNER™,
QUILT DESIGNER™ II, SAPPHIRE™
875Q, 870Q, 855, 850, 835, 830.

------------- Or, you can contact us for more detail.

We offer sealed card, double folding blister, regular card package.

1. Double Card & Double Blister ;

2. Sealed Card ;

(Please kindly contact us for more package details)

For series 1 package, we can offer 5 size to you. Check the following Size.

Type 1.  8cm X 8cm Double folding

Double folding Blister size : 8X7.5X2cm (lenght X width X height)

Capacity of product : 5X4X1cm (length X width X height)

Type 2.  7.5cm X 15.5cm Double folding

Double folding Blister size : 15.5X7.5X2cm (lenght X width X height)

Capacity of product : 5X4X1cm (length X width X height)

Type 3.  7.5cm X 15.5cm Double folding

Double folding Blister size : 15.5X7.5X3cm (lenght X width X height)

Capacity of product : 5X4X2cm (length X width X height)

Type 4.  7.5cm X 15.5cm Double folding

Double folding Blister size : 15.5X7.5X3.5cm (lenght X width X height)

Capacity of product : 7.5X5X3cm (length X width X height)

Type 5.  10.5cm X 18cm Double folding

Double folding Blister size : 18X10.5X4cm (lenght X width X height)

Capacity of product : 8X6.5X4cm (length X width X height

For sealed card package, we offer 1 type to you.

Series  9.5 X 9.5 cm sealed card package (1 sewing foot in)

Card size : 9.5 cm X 9.5 cm (length X width)

Sealed size : 3 X 3 X 1.5 cm (Length X Width X Height)

----------Others 3in, 5in, 15in, 10in belongs to OEM/ODM.

Contact renjyi1965co@gmail.com for more detail.

This foot can be also used on the ''regular low shank'' sewing machines.

Step 1. Change 4124112-45 or 4126161-45 to replace the original shank adapter.

Step 2. Use the screw from RENJYI - RJ-SC03 R3 to against the bar.

Step 3. try it on and use it.

↑ 4124112 + R3 (RJ-SC03)

↑ 4126161-45 + R3 (RJ-SC03)
